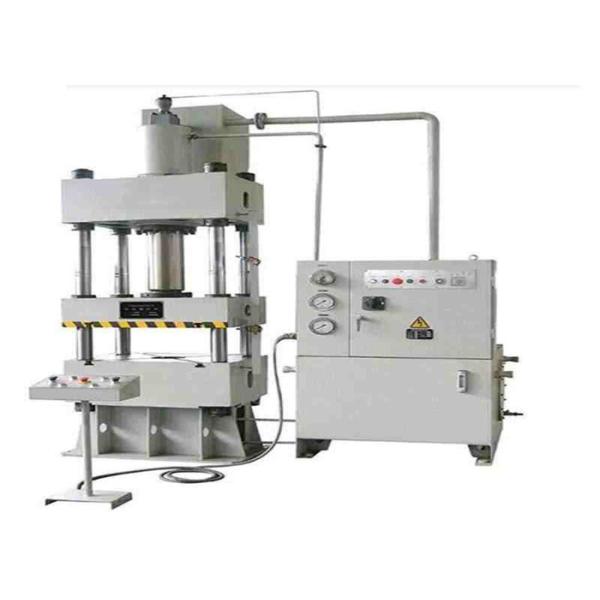

630T Four Column Type Hydraulic Press Machine For Elbow Calibration
If you are interested in our 630T Four Column Type Hydraulic Press Machine For Elbow Calibration,please visit to our factory to know more information about single hydraulic press machine.hei yan also professionally manufacture elbow forming machine,bending machine,pipe expanding machine,medium frequency,tee machine,steel pipe,pipefittings and so on.
The working environment of Frame Type Hydraulic Pressing Machine:
1. Temperature: 0 to 40.
2. Humidity relative humidity below 90%.
3. Voltage: 380V(15% and +5%), 50HZ
| Specification |
| Item | Unit | HYY-63 | HYY-100 | HYY-200 | HYY-315 | HYY-315A | HYY-500 | HYY-500A | HYY-630 | HYY-800 | HYY-1000 | HYY-1600 | HYY-2000 | HYY-2500 |
| Nominal Pressure | KN | 630 | 1000 | 2000 | 3150 | 3150 | 5000 | 5000 | 6300 | 8000 | 10000 | 16000 | 20000 | 25000 |
| Ejecting Force | KN | 180 | 190 | 300 | 400 | 400 | 1000 | 1000 | 1000 | 1000 | 1000 | 2000 | 2500 | - |
| Back Stroke Force | KN | 190 | 320 | 470 | 600 | 600 | 1000 | 1000 | 1000 | 1100 | 1300 | 1000 | 2600 | 1000 |
| Stroke Length | mm | 400 | 600 | 710 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 1000 | 1000 | 1200 |
| Ejecting Stroke | mm | 150 | 200 | 200 | 250 | 250 | 350 | 350 | 350 | 350 | 350 | 400 | 300 | - |
| Opening Height | mm | 600 | 900 | 1120 | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 2500 | 2500 |
| Speed of Slide | Idle Stroke | mm/S | 76 | 80 | 120 | 100 | 100 | 100 | 140 | 80 | 120 | 120 | 150 | 150 | 150 |
| | Work | mm/S | 15 | 10 | 10-15 | 6-12 | 6-12 | 4-10 | 4-10 | 4-10 | 5-12 | 4-12 | 5-12 | 4-10 | 5-12 |
| | Back Stroke | mm/S | 70 | 50 | 80 | 65 | 65 | 80 | 80 | 70 | 90 | 90 | 150 | 150 | 120 |
| Ejecting Speed | Upward | mm/S | 80 | 80 | 95 | 95 | 95 | 80 | 80 | 80 | 65 | 80 | 50 | 40 | - |
| | Back | mm/S | 160 | 160 | 135 | 135 | 135 | 160 | 160 | 220 | 200 | 170 | 80 | 120 | - |
| Bolster Surface | L.R. | mm | 520 | 690 | 1000 | 1260 | 2000 | 1400 | 2200 | 1600 | 1500 | 1500 | 2500 | 2000 | 2800 |
| | F.B. | mm | 490 | 630 | 900 | 1120 | 1400 | 1400 | 1400 | 1600 | 1500 | 1500 | 1800 | 2000 | 2400 |
| Overall Dimension | L.R. | mm | | | | | | 4060 | 5000 | 5145 | 5100 | 4900 | 8300 | 8000 | 3650 |
| | F.B. | mm | | | | | | 3525 | 3525 | 4600 | 4200 | 3400 | 3000 | 3000 | 5900 |
| | Above Ground | mm | 2592 | 3090 | 3950 | 4390 | 4680 | 5700 | 5700 | 6000 | 7100 | 7500 | 5925 | 7660 | 7530 |
| Power of Motor | KW | 7.5 | 7.5 | 22 | 22 | 22 | 44 | 46 | 60 | 74 | 68 | 91..6 | 183 | 156 |
| Weight | Kg | 3000 | 3500 | 10500 | 15500 | 28000 | 29000 | 42000 | 42000 | 51000 | 54000 | 142000 | 148000 | |
630T Four Column Type Hydraulic Press Machine For Elbow Calibration is suitable for the pressing, drawing, edging, bending, adjusting, cold installing, cold and hot forging and etc for metal and non-metal materials.
We have 20 Professional foreign trade business sales and numerous experienced technicians including one chief engineer, one senior engineer, 5 general engineers ,30 mechanical equipment installation and adjustment professionals and thus we are capable to provide technical solutions and services to our customers.
The services provided by our team including casting workshop planning, equipment selection, equipment development and lean production. The engineers conduct strict inspection and tracking throughout each stage of the solution scheme.
For instance, project manager negotiation, technical specification planning, design planning, project filing, contract signing, production arrangement, equipment commissioning before shipping, equipment delivery, equipment on-site installation, equipment on-site commissioning and equipment inspection upon receiving. Our professional services are highly recognized by the domestic and foreign customers.
